Getting Started
Draw a basic outline. Whether you want to add an emblem or are designing for efficiencies, sketch out what you want the final sail to look like so that you have a jumping off point. Look to other similar boats for inspiration. Research the dimensions of similar sails and have an idea of what kind of sailing you’d like to do. This gives basic reference points to research and execute.
Find a suitable workspace. Depending on the size of the vessel, making your sail can be a huge undertaking. Ensure that you have a workspace that can not only house a large piece of material but can also give you room to maneuver while making a lot of noise.
Address your sewing needs. Whether you’re a hobbyist or professional, you will need an industrial sewing machine that is able to do a zigzag stitch using V69 thread. It may be wise to let a professional take care of the sewing to ensure safety and maximum durability. If you are planning to sew the sail yourself, you will also need a special sewing table to be able to support the industrial sewing machine. This table needs to be about twice the size of a table tennis table in order to support the size of the sail.
Know the boom and mast dimensions. Measure the boat you intend to use the sale for in order to calculate the appropriate size of your sail. If you have a short boom and a tall mast then that is a High aspect. If you have a long boom and a short mast, it is a low aspect. Shorter booms give you more maneuverability.
Designing the Sail

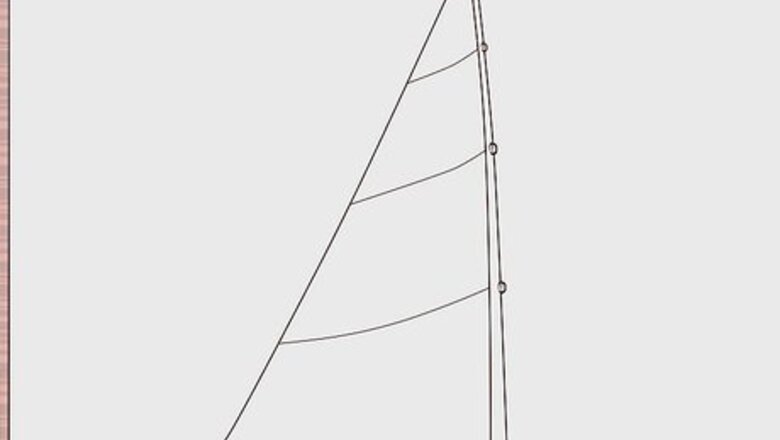

Draw the front of the sail. The front of the sail is called the luff curve. The luff curve is the most important part of the sail because the rest of the sail’s integrity depends on it. The luff curve at front of the sail relates to how your mast will bend. The luff curve won’t match the curve of the mast. The top third of the luff curve will be slight and the bottom of the curve, close to the boom, will be greater than the mast curve. There are different theories on what the perfect luff curve should be so research how to optimize the luff curve for your prefered type of sailing.
Add in battens. Battens keep the shape of a sail and come in full or half where full battens are for high performance. Battens are attached to the sail using two types of pockets: pockets that you can't adjust and pockets that you can. Adjustable pockets allow you to adjust your sail more to wind conditions. If you want more stability, add more battens; however, use less battens to make your boat easier to manoeuvre and more lightweight.
Evaluate where to add seams. Seams on your sail allow you to be strategic with choosing material that will optimize your sail’s performance. They also allow you to shape your sail more easily. A panel means that you have stitched different materials on a sail. Use heavier materials near the bottom of the sail. Seams also help to optimize the amount of material you use.
Make a pattern. Create your sail pattern as you would a dress. Translate your sail into real-dimensions using newspaper, cheap fabric, or another thin piece of paper. Double check all your measurements and cut out your panels when ready. The pattern should be pliable and easily moved in order to cut it out of your sail fabric. Tape fabric or newspaper together for more surface area when creating a large sail. The luff curve and shaping the seam will create a three dimensional sail so don’t worry if your sail lies flat as you construct your pattern.
Choose a fabric. Research what fabric works best for your sailing needs and budget. Monofilm is an economical choice but ensure you use robust material when constructing the luff and foot of your sail. Pentex taffeta scrim laminate is very durable but on the higher price end. There are also special polyesters and laminated woven fibers. Commercial sails are commonly made from a material called dacron, which is a type of polyester. Ensure that the material you choose resist stretching and can withstand rips. Heavy monofilm and woven sailcloth are common choices.
Assembling the Sail
Start with a central panel. Place your pattern onto your chosen material and outline the edges of the panel. Before cutting any material, understand that the edges of each panel will need to be stuck together and then sewn.
Cut out your pattern. Once you have outlined your pattern onto your material, including battens and seams, you may now cut out your pattern. When creating a seam with shape, you want the shape to be about 35% from the luff.
Stitch the materials. Move from panel to panel while leaving extra cloth at the external edges of the sail. It’s best to trim and adjust the sail shape once all panels are sewn together. Stick and sew two panels at a time until the sail is all in one piece. You can now trim it to your design on the table and draw on the batten pockets.
Reinforce the material. Using dacron tape or reinforced monofilm tape, reinforce the seams. You can also glue a layer of cloth on either side of the material for added strength.
Fortify the foot and the batten pockets. There will be a high degree of force applied to these areas so ensure that they can withstand that amount of tension. Depending on the type of sail, attach the luff once you have dealt with the batten pockets.
Create the sleeve for the mast. Measure the width of existing sails and adjust your sail accordingly. Sleeves can either be a single piece or made from a number of pieces of material but ensure that the head is reinforced and capable to withstand the strain from the mast tip. Create your sleeve so it fits down to the foot batten. Create an adjustable head for your sleeve if this is your first attempt at a sail. Use pulleys from old sails or get them from a sail maker.
